The fundamental idea of spatial audio on websites is to move beyond simple stereo (left/right) and create a soundscape where audio elements have a perceivable position and presence in a three-dimensional virtual space around the listener.
This greatly enhances immersion, realism, and can even improve information delivery in certain contexts.
Spatial audio, or 3D audio, leverages how humans naturally locate sounds. Our brain uses subtle differences in the sound reaching each ear (timing, loudness, frequency) and the way our outer ear (pinna) shapes sound to determine a sound's origin.
Spatial audio systems aim to replicate these cues digitally 💡
✅ 1. 3D Sound Simulation
What it means:
This is the overarching goal. Instead of sound just coming from left or right speakers/headphones, spatial audio aims to position sounds anywhere in a 360-degree sphere around the listener.
How it works for websites:
Virtual Sound Sources: Developers define sound sources within a 3D coordinate system (X, Y, Z axes) relative to a "listener" point (also defined in 3D space).
Web Audio API: The primary tool for this on the web is the Web Audio API. It provides nodes like PannerNode (which has properties for position, orientation, and distance modeling) and an AudioListener object (which has properties for the listener's position and orientation).
Dynamic Placement: As the listener's virtual position or orientation changes (e.g., through mouse movement, scrolling, or in a WebXR experience), or as sound sources move, the audio processing updates in real-time to reflect these changes.
Effect:
Sounds can genuinely feel like they are coming from in front, behind, above, below, or moving around the user, rather than just being panned left or right.
✅ 2. Head-Related Transfer Function (HRTF)
What it is:
HRTF is the critical set of acoustic properties that describe how a sound wave is modified by a listener's head, torso, and importantly, the complex folds of their outer ears (pinnae) before it reaches the eardrums. These modifications are unique to the direction from which the sound originates.
How it works:
Acoustic Filtering: The head acts as a barrier, causing differences in arrival time (Interaural Time Difference - ITD) and loudness (Interaural Level Difference - ILD) between the two ears for sounds not directly in front or behind.
Pinna Cues: The shape of the pinnae introduces subtle frequency filtering (spectral cues) that are highly dependent on the sound's elevation and whether it's in front or behind. Our brain learns to interpret these spectral notches and peaks to localize sound.
Digital Mimicry: HRTF algorithms are mathematical models (often derived from measurements on dummy heads or real people in anechoic chambers) that apply these filtering effects to a digital audio signal. By processing a mono sound source with appropriate HRTF filters for each ear, the system can make it seem as if the sound is originating from a specific point in 3D space.
Implementation on Websites:
The Web Audio API's PannerNode can utilize HRTF datasets (though browser implementations vary in quality and the specific HRTFs used).
Headphones are crucial: HRTF processing is designed to deliver a specifically filtered signal to each ear independently. Headphones ensure this isolation, allowing the brain to correctly interpret the spatial cues. Speaker playback can cause crosstalk, diminishing the effect.
✅ 3. Binaural Recording Techniques
What it is:
A method of recording audio that inherently captures HRTF-like cues at the point of recording.
How it works:
Dummy Head (or In-Ear Mics): Two omnidirectional microphones are placed where a human's eardrums would be, typically inside a specially designed dummy head that mimics human acoustic properties (or sometimes directly in a real person's ear canals).
Natural Filtering: As sound waves interact with the dummy head and its "pinnae," they are naturally filtered before reaching the microphones, just as they would be for a human listener.
Playback and Web Implication:
Headphone Playback: When this recording is played back through headphones, the listener's brain interprets the captured cues as if they were present at the original recording location, creating a highly realistic 3D sound experience. The recorded sound is "pre-spatialized."
Static vs. Dynamic: Binaural recordings provide a fixed spatial perspective (the perspective of the dummy head during recording). For interactive spatial audio on a website where the listener or sound sources can move, you typically use HRTF processing (Point 2) on mono sound sources, rather than relying solely on pre-recorded binaural audio. However, you can play back pre-recorded binaural audio on a website for a non-interactive but immersive experience.

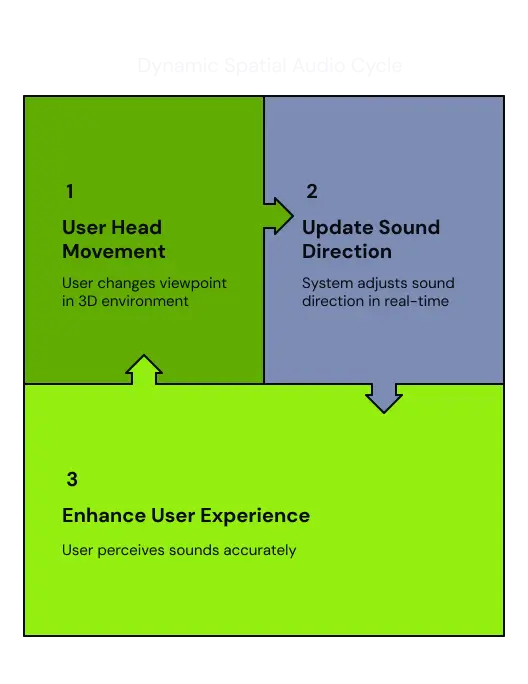

✅ 4. Directional Audio Cues (Dynamic Interaction)
What it is:
The ability for the spatial audio system to update the perceived direction of sounds in real-time as the user's virtual "head" or viewpoint changes within the website's 3D environment.
How it works for websites:
Listener Tracking: The website needs a way to determine the user's current orientation in the virtual space.
WebXR (VR/AR): Head-mounted displays provide precise head tracking data.
Standard Websites: This can be simulated. For example, mouse movement could control "looking around," scrolling could move the listener forward/backward, or keyboard controls could navigate a character in a 3D scene.
Web Audio API's AudioListener: The setOrientation() and setPosition() methods of the AudioListener object are updated based on this tracking.
Real-time Re-calculation: PannerNodes then re-calculate the audio processing (using HRTFs) for each sound source based on its position relative to the listener's new orientation and position.
Effect:
If a sound is virtually to your right, and you "turn your head" (e.g., move the mouse) to face it, the sound will then appear to come from in front of you. This creates a strong sense of presence and interactivity.
✅ 5. Distance and Environment Effects
What it is:
Simulating how the characteristics of a sound change based on its distance from the listener and the acoustic properties of the virtual environment.
How it works for websites (using Web Audio API):
Distance Attenuation:
PannerNode has distance models (e.g., linear, inverse, exponential) that reduce the volume of a sound as its virtual distance from the AudioListener increases.
Air Absorption: High frequencies are absorbed more by air over distance, making distant sounds more muffled. This can be simulated with a BiquadFilterNode (low-pass filter) whose cutoff frequency changes based on distance.
Environment Effects (Reverberation/Echo):
ConvolverNode: This powerful node can apply reverberation by using an "impulse response" – a recording of how a brief sound (like a clap) sounds in a specific real or virtual space (e.g., a small room, a large hall, a cave).
The output of PannerNodes can be routed through a ConvolverNode to make sounds appear as if they are occurring within that simulated environment.
Occlusion/Obstruction (More Advanced): Simulating how sound is blocked or muffled by objects between the source and listener. This is harder to do accurately in real-time on the web but can be approximated with volume changes or filtering based on line-of-sight calculations in the virtual environment.
Effect:
Sounds not only come from specific directions but also feel realistically integrated into the virtual space, with appropriate loudness, clarity, and environmental reflections based on their distance and surroundings.
✅ 6. Key Requirements & Considerations for Websites:
Web Audio API: The cornerstone for implementing dynamic spatial audio.
Headphones: Strongly recommended (often essential) for the best experience, especially for HRTF-based spatialization and binaural playback.
Performance: Complex spatial audio processing, especially with many sources or convolution reverb, can be CPU-intensive. Optimization is key.
Content Creation: Creating or sourcing audio assets suitable for spatialization (often mono sources for dynamic placement) and potentially impulse responses for environments.
User Interaction Model: How will users navigate or orient themselves in the virtual audio space?
Accessibility: While immersive, ensure that critical information conveyed through spatial audio also has non-auditory alternatives (e.g., visual cues, transcripts).
✅ TL;DR
Spatial audio on websites uses the Web Audio API to simulate how humans perceive sound in 3D. It positions virtual sound sources relative to a listener and applies HRTF algorithms to mimic the filtering effects of the head and ears, creating directional cues (best heard on headphones).
This experience can be dynamic, with sound directions changing as the user "moves" or "looks around" the virtual space.
Furthermore, it simulates distance effects (loudness, muffling) and environmental acoustics (like reverb using a ConvolverNode) to create a deeply immersive, realistic, and engaging auditory environment beyond simple stereo.
